Slender Seal
Slender Seal is a new seal system that fits all GRABO models, including Nemo GRABO, GRABO Pro lifter-20, RTC tools GRABO, FXAH-120 Probst GRABO, Topspin Powertools GRABO and other co-branded units.
For lifting surfaces with a longer narrow surface area - such as long Tiles - Pavers- Pipes -Cut to size bench tops
Maximum Capacity lifting is 187 lb (85 kg)
For lifting surfaces with a longer narrow surface area - such as long Tiles - Pavers- Pipes -Cut to size bench tops
Maximum Capacity lifting is 187 lb (85 kg)
Spec Sheet

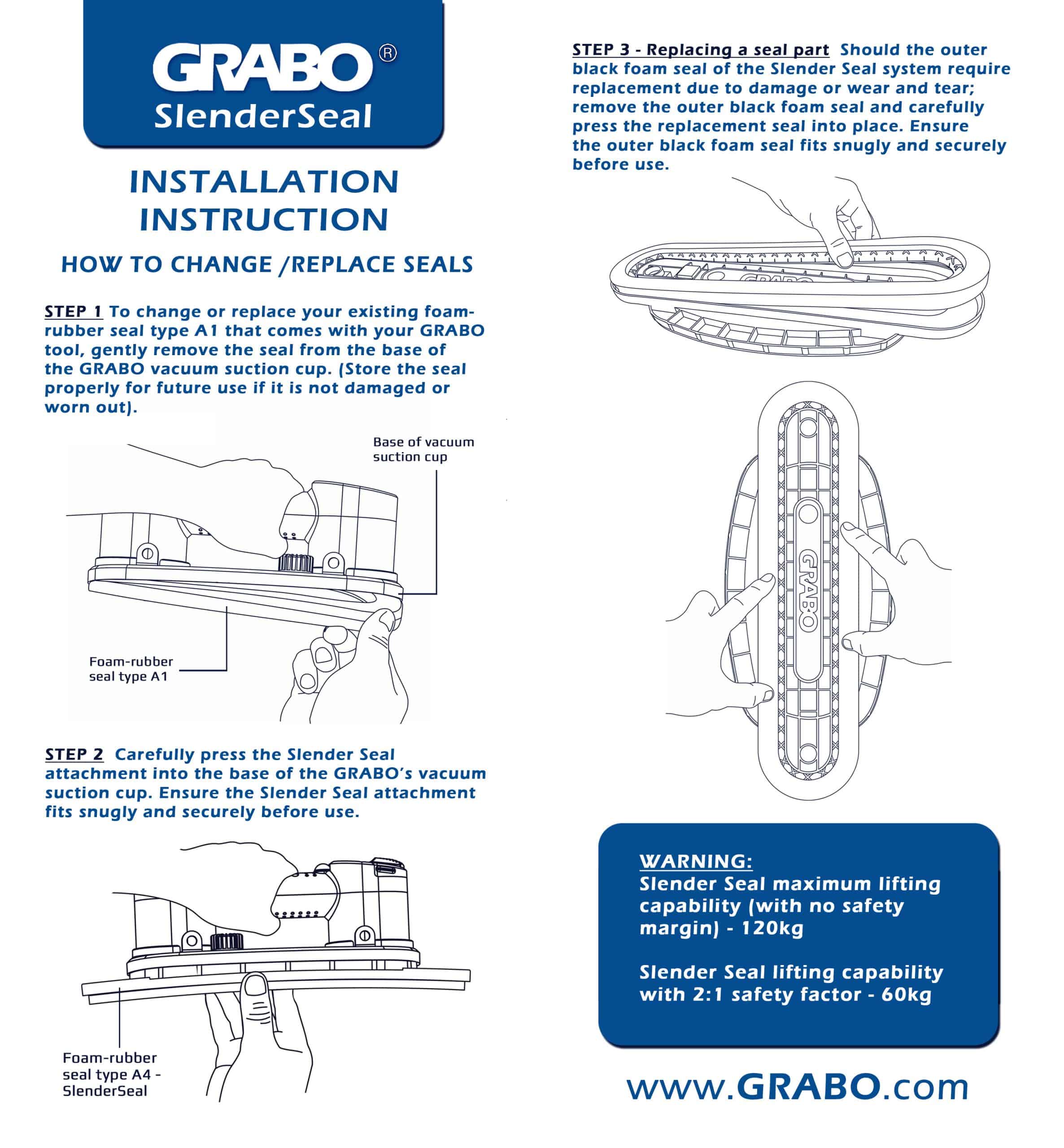

Manual Book
Coming Soon!
Specifications:
| Black foam seal | |
|---|---|
| Material | SBR rubber foam sponge |
| Color | Black |
| L x W x H | 16.2 x 6.9 x 1.24” (411 x 175 x 31.5 mm) |
| Dimension of seal | 371 x 65 mm |
| Density | 10.6 Lb/cft (170 kg/m^3) |
| Hardness, Shore C | 10_2 |
| Tearing pressure | 1800 Psi (126 kg/cm^2) |
| Compression to 25% size at | 8.5 Psi (6000 kg/m^2) |
| Lifetime (Compressions till performance reduction). | ~900 |
| Water Absorption, % | <=5 |
| Shrinkage at 160F (70C) for 24 hrs, % | <=20 |
| Recommended Storage Temperature | Room temperature |
| Red seal | |
| Material | Silicon Foam |
| Color | Red |
| L x W x H | 16.2 x 6.9 x 1.24” (411 x 175 x 31.5 mm) |
| Density | 40.5 Lb/cft (650 kg/m^3) |
| Hardness, Shore C | 55_5 |
| Water Absorption, % | |
| Recommended Storage Temperature | Room temperature |
| Full seal | |
| Features | Combined seal on plastic frame Slender profile |
Lifting Capacity:
 | Perpendicular Hold Z | Parallel Hold X | Parallel Hold Y | |||
|---|---|---|---|---|---|---|
| Maximum value | Safe value（50%) | Maximum value | Safe value（50%) | Maximum value | Safe value（50%) | |
| Glass | 264 lbs (120kg) | 132 lbs (60kg) | 110 lbs (50kg) | 55 lbs (25kg) | 220 lbs (100kg) | 110 lbs (50kg) |
| Metal | 242 lbs (110kg) | 121 lbs (55kg) | 110 lbs (50kg) | 55 lbs (25kg) | 220 lbs (100kg) | 110 lbs (50kg) |
| Wood | 187 lbs (85kg) | 94 lbs (43kg ) | 66 lbs (30kg) | 33 lbs (15kg) | 176 lbs (80kg) | 88 lbs (40kg) |
| Rough Concrete | 264 lbs (120kg) | 132 lbs (60kg) | 110 lbs (50kg) | 55 lbs (25kg) | 220 lbs (100kg) | 110 lbs (50kg) |
